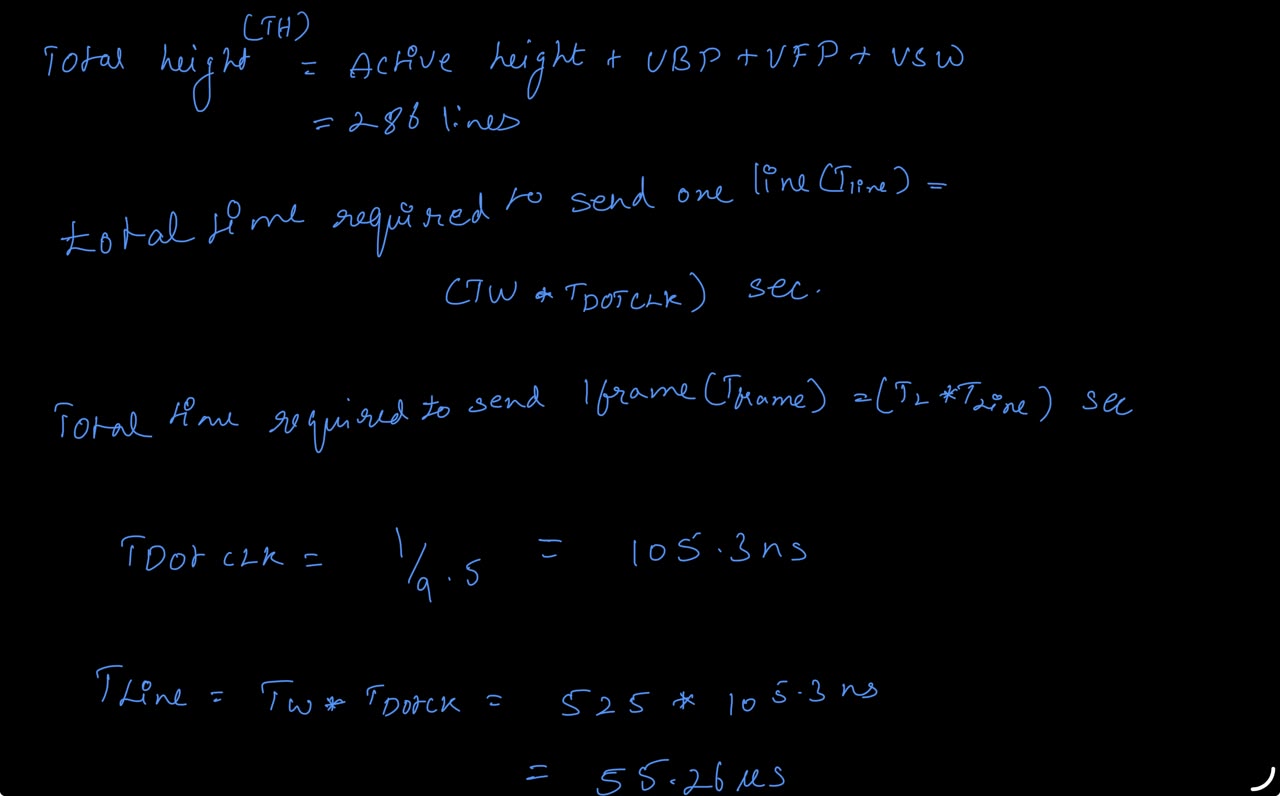

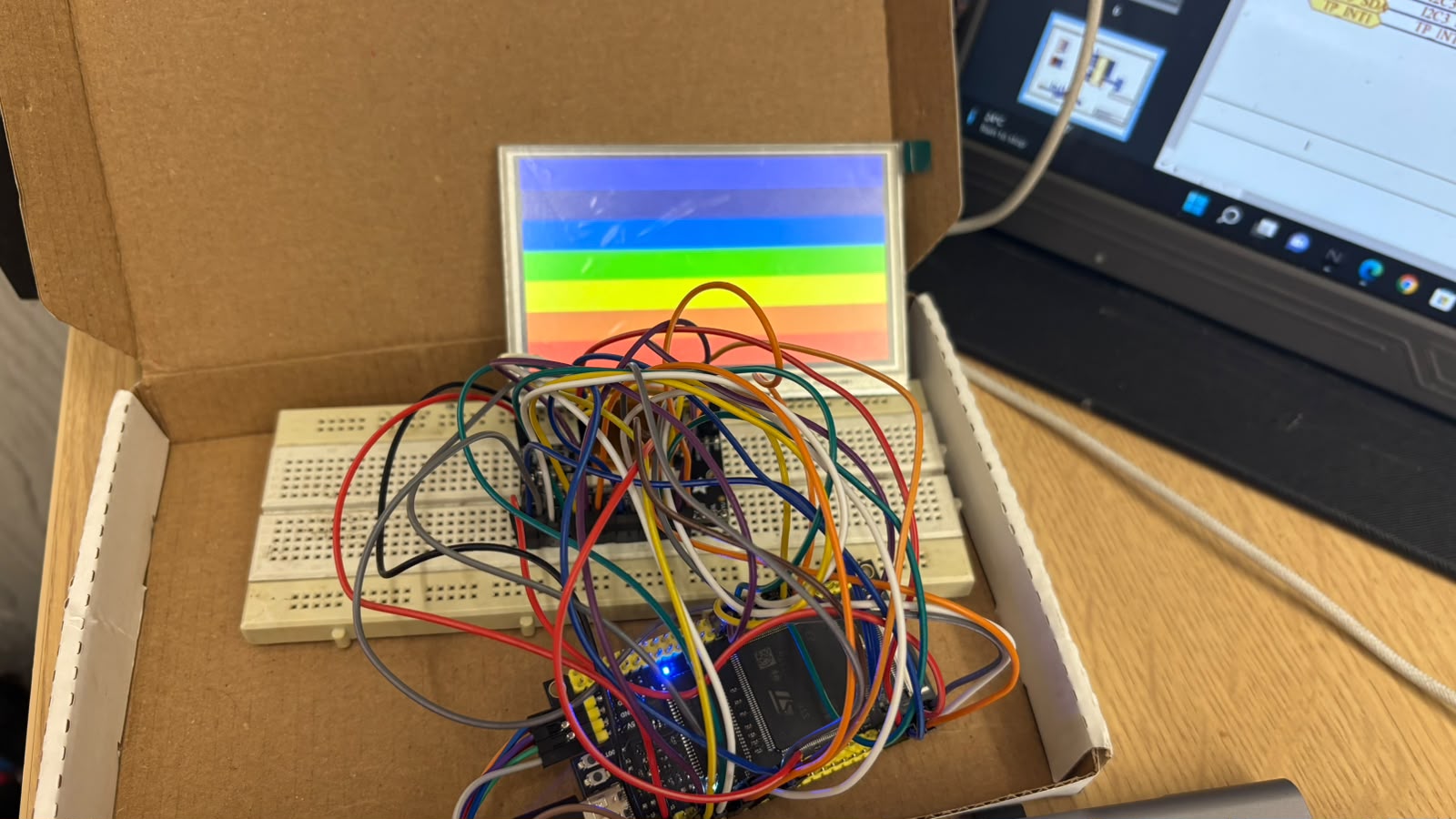

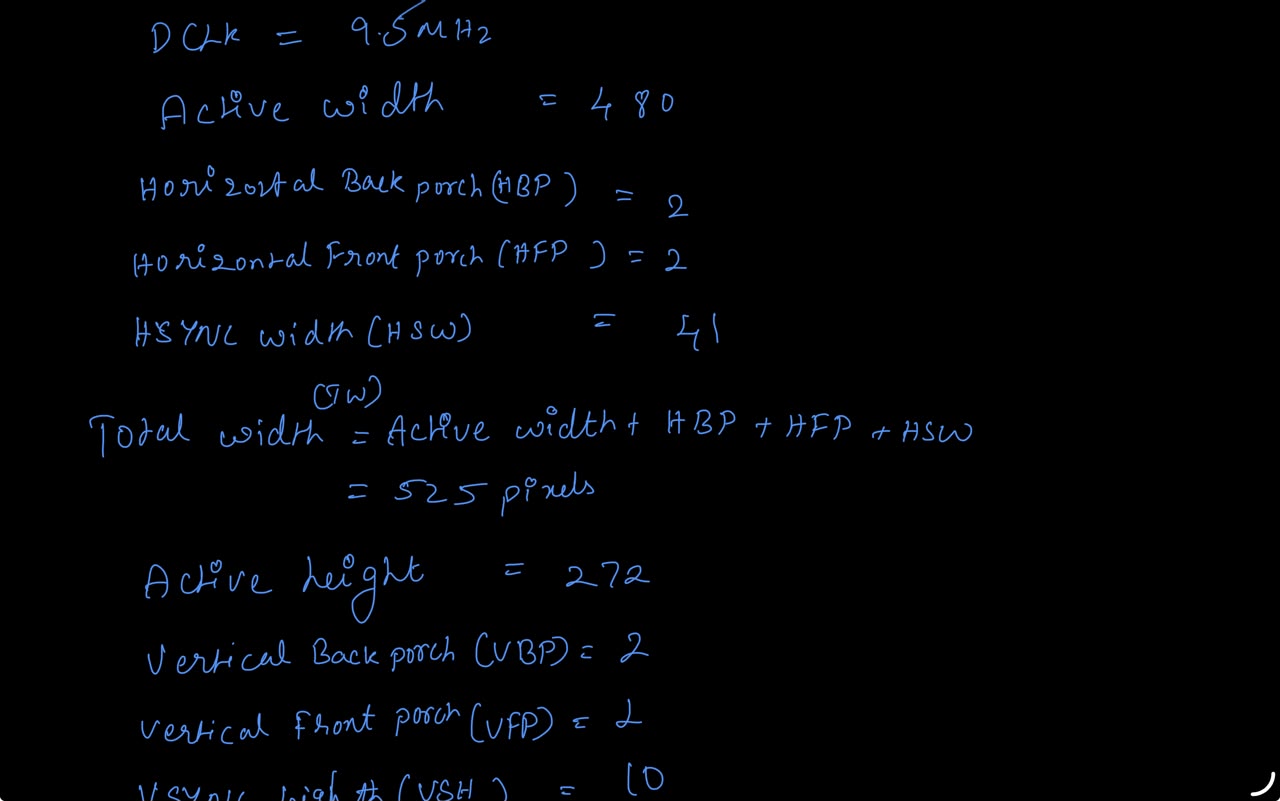

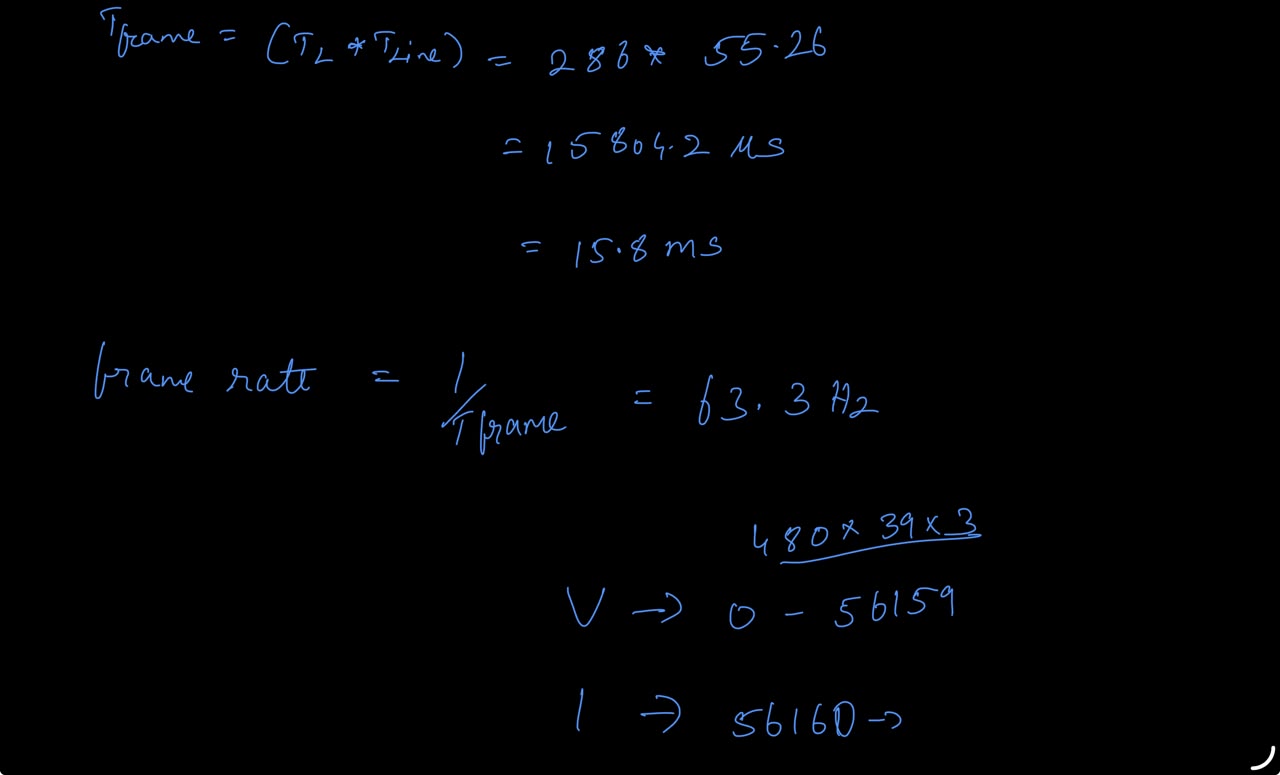

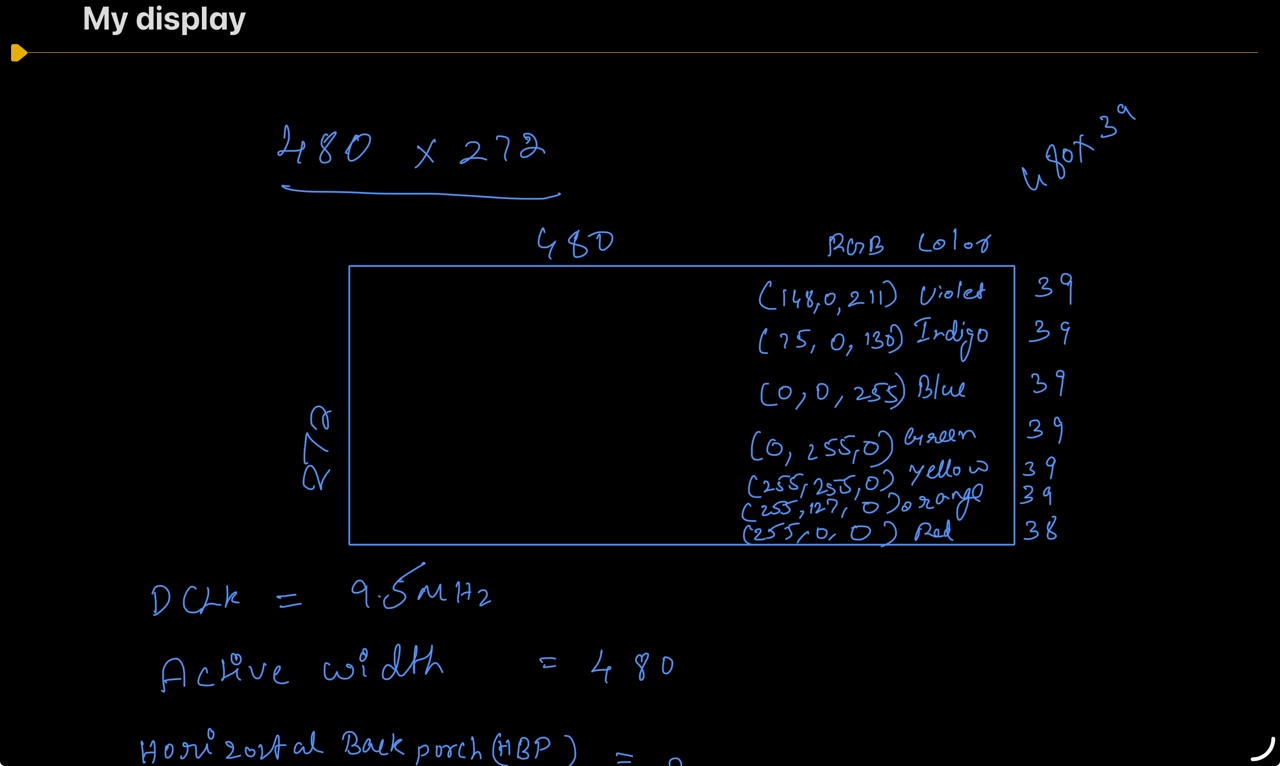

Today, i started writing the firmware for the LTDC, it was so fun the registers were not complicated to code, did some maths, to do a VIBGYOR Screen, first i started with default background color, then i started programming the layer firmware then i tried making a solid backround with the default active backround and then activated teh layer 1, 1/4 of the screen size and made it show diff color, and i tried playing with the alpha values, and now i understand how it works. The display i am using is an 24-bit, RGB888, with an resistive touch screen, i have ordered an I2C controller for the touch screen i will receive it day after tomorrow, i will update that soon.
What I did
Completed writing Firmware program LTDC.
Next
start Firmware for LVGL, I2C, EXTI, DMA, SDMMC.

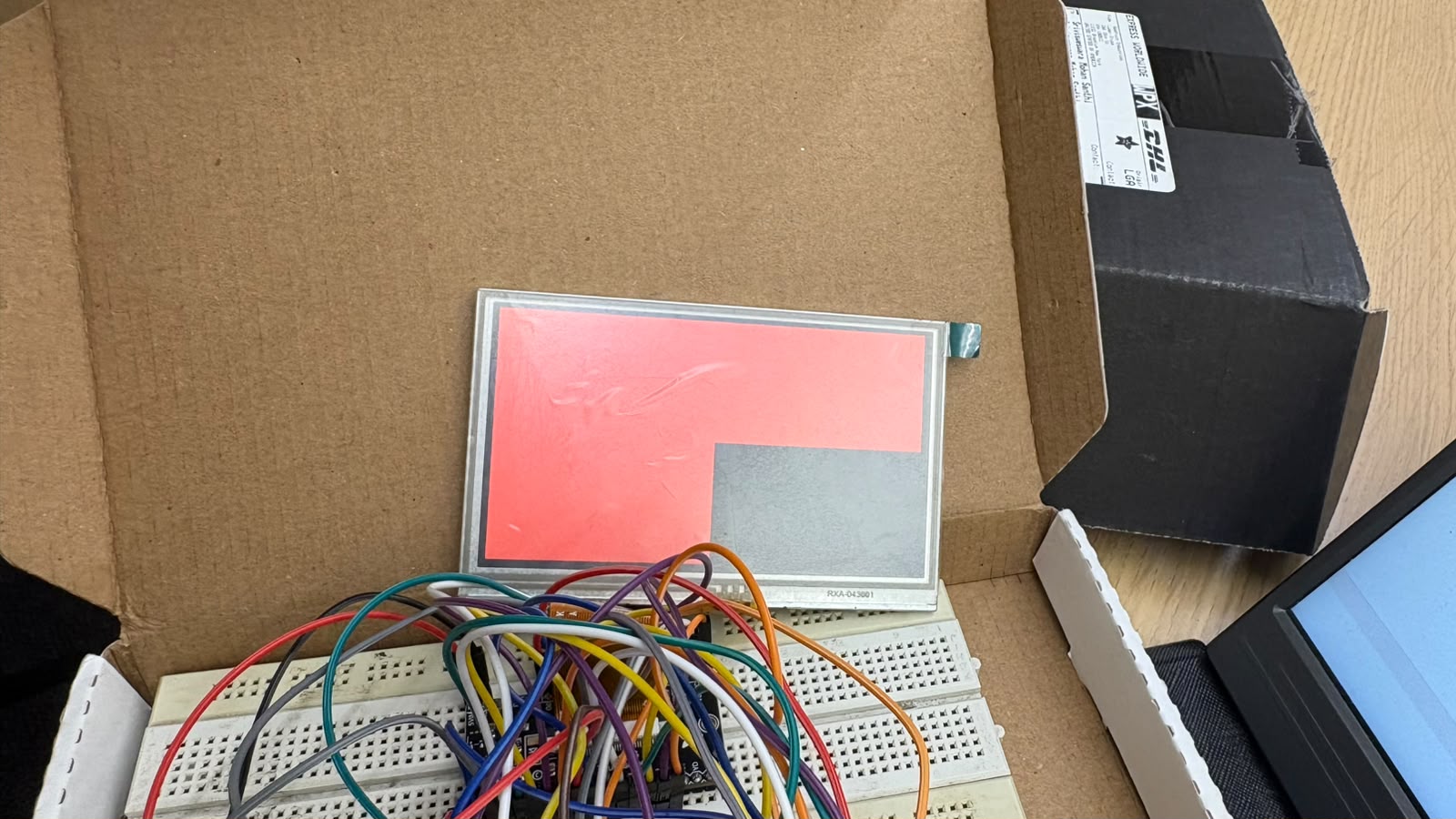

A snip of the LCD Display Showing, default Backround colour and layer 1Calc - ICalc - IICalc - IIICalc - IV
